Mühlen RD 600XH Thermal (Clamshell) Binding Machine
Binding Up to 480 Sheets
With compression and heating functions, the MÜHLEN RD 600XH can bind up to 480 sheets using different heating/binding times (60s-120s-210s).
Standby Mode
The model can automatically switch to standby mode (30 Min) and includes a fan-assisted cooling chamber for the bindings processed with the hot press to cool down.
General Features
BINDING UP TO 480 PAGES
The Mühlen RD600XH is capable of binding 480 documents A4 and smaller in a single run. With 3 levels of dwell time, the model alerts the user when it reaches the best binding level after the required time

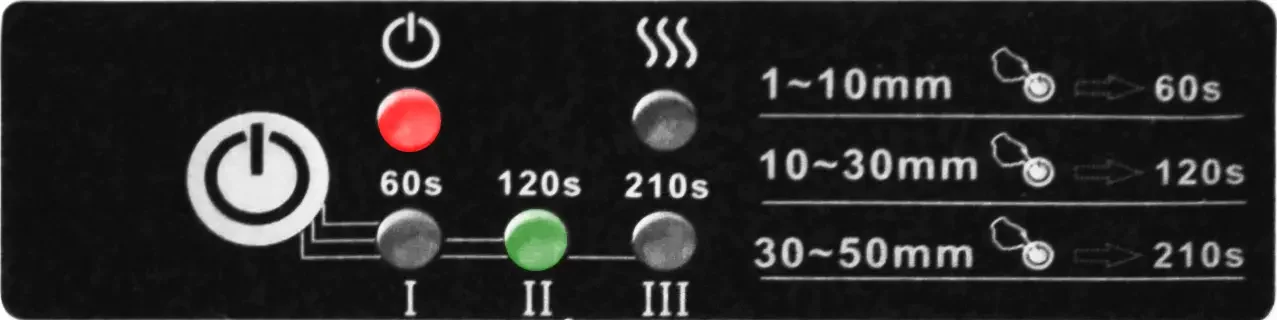

ADJUSTMENT FUNCTION WITH DIGITAL DISPLAY
The Mühlen RD600XH model, which can easily adjust all its functions from the digital display, has a 3-stage heat standby setting. After 60 seconds between 1~10 mm, 120 seconds between 10~30 mm and 210 seconds between 30~50 mm, the machine stops heating by warning the user.
Technical Specifications
- Paper Entry Width: 320 mm
- Maximum Binding Capacity (Single Binding): 480 Pages / 50 mm
- Estimated Warm-up Time: 3 Minutes
- Binding Loops: I-II-III- / 60s - 120s - 210s
- Ready Indicator: Sound and Signal
- All Stainless Metal Body and Components
- LED interface: Yes
- Automatic Detection: Yes
- Power Protection Auto Shutdown: Yes (30 Minutes)
- Separate Drawer Chambers for Warming and Cooling
- Oven Mouth Opening Lever Assist
- Estimated binding time 1 to 3.5 minutes
- 24 Months Full Warranty
