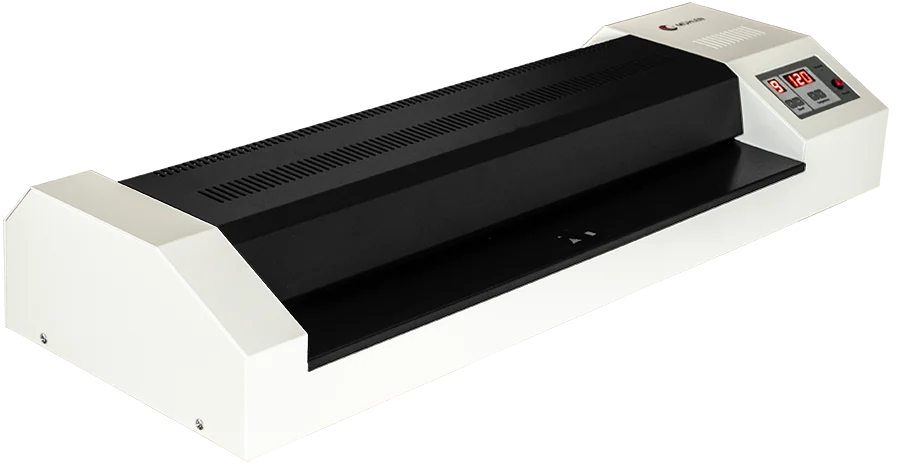

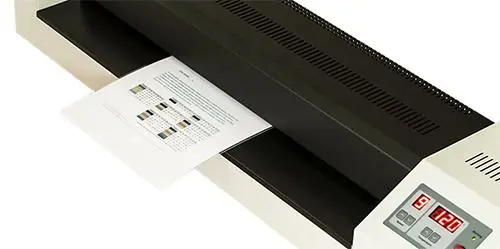

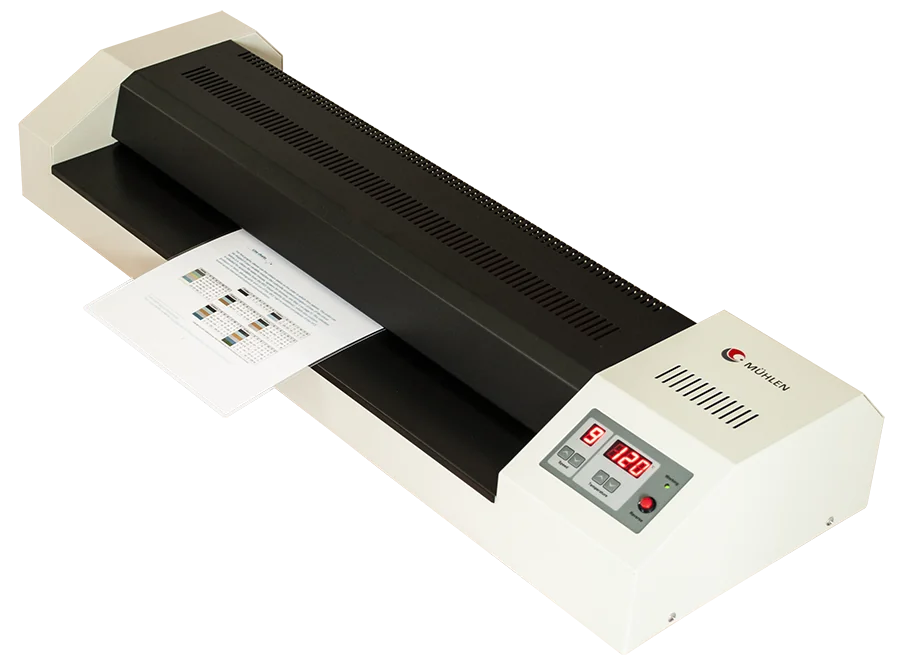

MÜHLEN 650-A1 A1 Size Laminating PVC Coating Machine
A1 Size Laminating Width / 650mm
The MÜHLEN 650-A1 model, the widest laminating machine in the world, features a 650mm feed entry width. It is extremely powerful and fast when laminating A1 size (594x841mm) and smaller documents (A2, A3, A4, A5, A6, A7, etc.). Additionally, its wide roller system provides energy efficiency.
4 Powerful Roller System
The model includes 4 exceptionally strong rollers, each with a length of 650mm and a diameter of 44mm. These dimensions are considered the largest laminating rollers in the world. Thanks to this system, the user benefits from both energy efficiency and high-performance lamination.
Super Speed: 600~1600mm/Minute
With 9 adjustable speed levels ranging from 600 to 1600 mm per minute, the MÜHLEN Iron 650-A1 model also features patented anti-jam and anti-stick technology. In the event of a jam or the need to cancel lamination, the user simply presses the reverse button. The rollers will instantly reverse to return the document or film to the user.
General Features
HOT & COLD LAMINATION
The first warm-up time for hot lamination of the model with hot and cold lamination is between 3~5 minutes. The model with 650mm inlet opening allows the user to laminate a single A1 film at the same time, or the user can laminate many small documents at the same time thanks to the wide feed inlet.

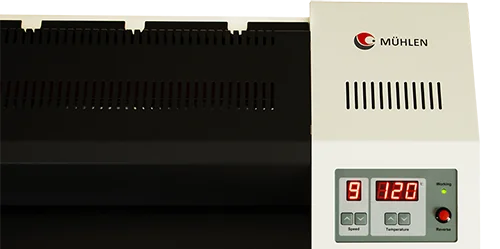

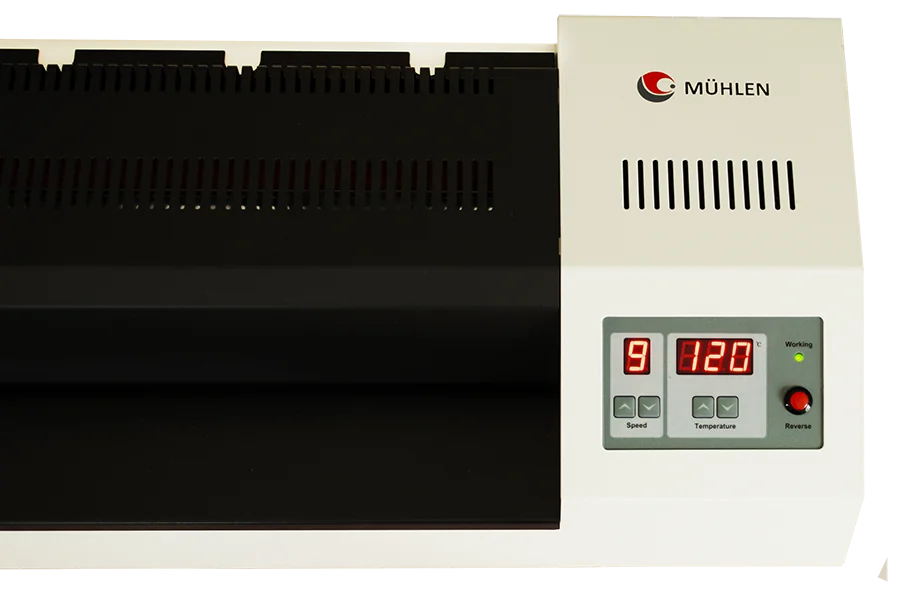

MANUAL TEMPERATURE AND SPEED ADJUSTMENT
MÜHLEN Iron 650-A1 model with 9 different speed level settings has a variable speed between 600~1600 per minute. It has a detailed Turkish user manual showing which micron, at which temperature and at which speed to laminate for the highest efficiency.
Technical Specifications
- A1, A2, A3, A4 ... Laminating film coating
- Feed spout width 650mm (A1 size)
- 4 custom-made cylinders (44mm diameter)
- Super glossy and strong PVC film coating
- The world's largest laminating machine
- 9 different speeds between 600~1600mm per minute
- Digital temperature and speed display and adjustment
- Automatic document jam prevention system
- Film coating between 75~300 microns (x2)
- Changeable temperature setting between 000~199°
- Hot and cold lamination coating
- Document revocation undo button
- 9 levels of different changeable speed
- 1.2mm max. material thickness
- 3~5 minutes warm-up time
- Digital temperature and speed adjustment system
- Ready-to-use green sign
- Strong all-metal body
- Precise temperature thermostat
- Consumption:1200 Watt
- 24 Months full warranty
