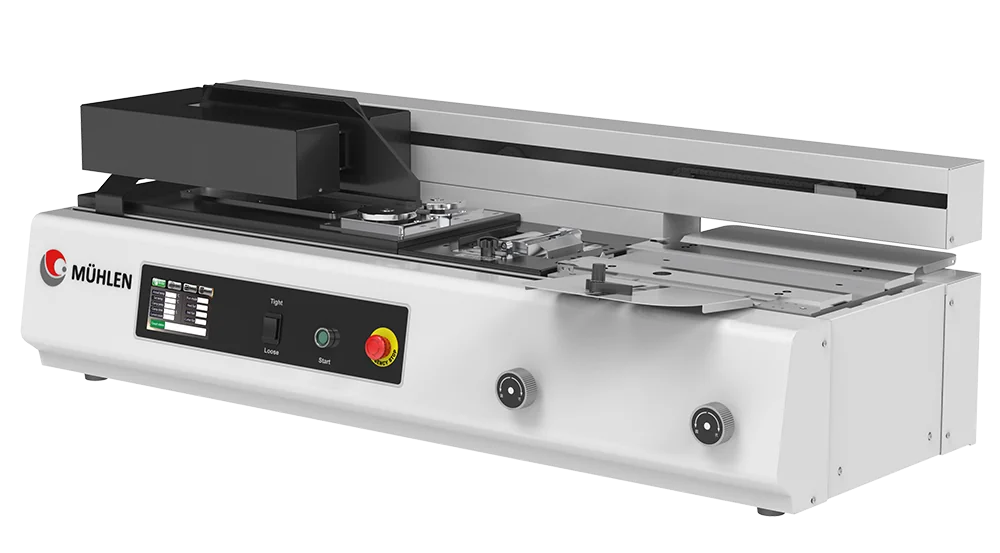

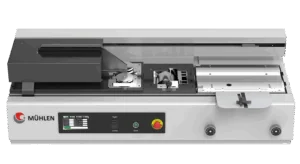

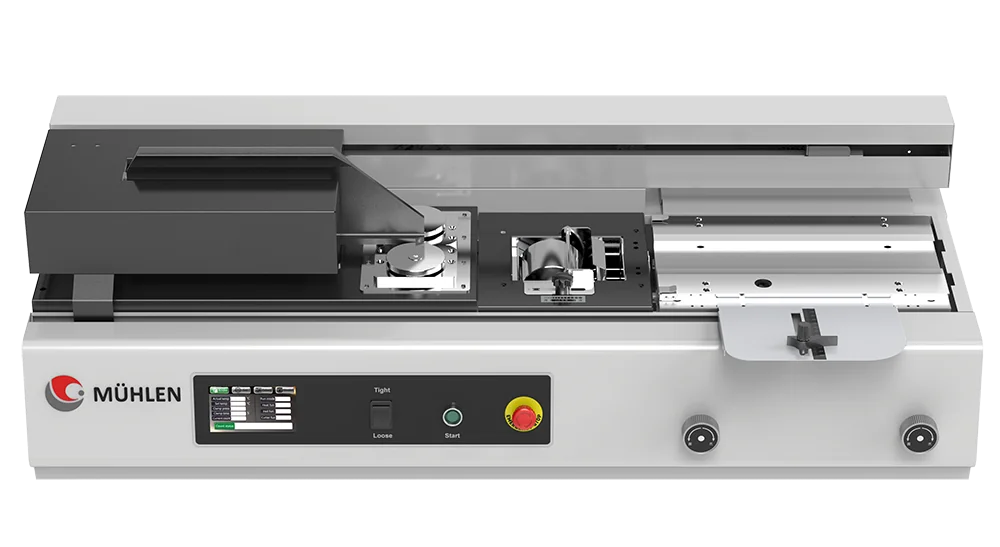

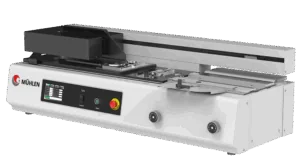

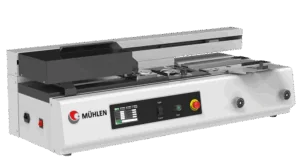

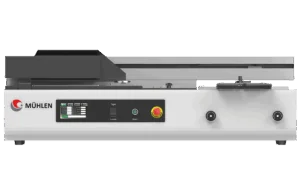

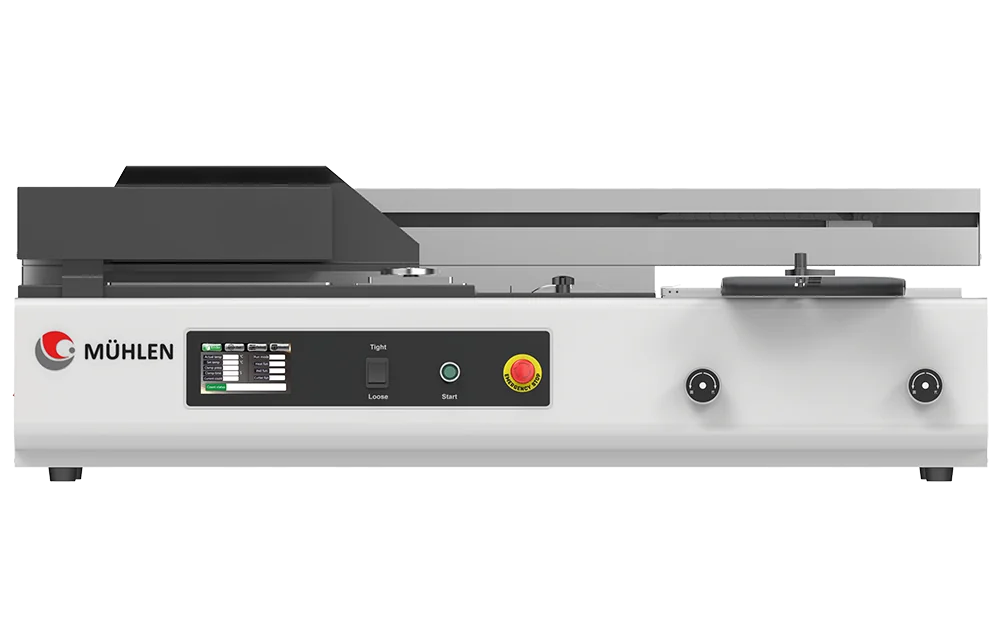

MÜHLEN TCM 111
Fully Automatic Thermal Glue Binding Machine
Fully Automatic Glue Binding
To bind documents with the MÜHLEN TCM 111, simply place the sheets in the feeder. The machine automatically clamps and mills the paper, applies adhesive, attaches the cover and moves the booklet back and forth along the rail.
Binding With or Without a Cover
The MÜHLEN TCM 111 can bind documents with or without a cover. Users can select and adjust the desired option on the touchscreen.
400-Sheet Binding
Binds A4 and smaller books containing 10–400 sheets (80 gsm, up to 40 mm thick) using hot-melt adhesive. It can bind up to 200 books per hour.
320 mm Binding Length
Binds books up to 320 mm long. Its automatic motorized carriage handles the milling and gluing processes.
Temperature, Pressure, Time, Cover and Other Settings
The touchscreen lets you adjust the temperature from 50–230°C, pressure, processing time, and whether binding is done with or without a cover.

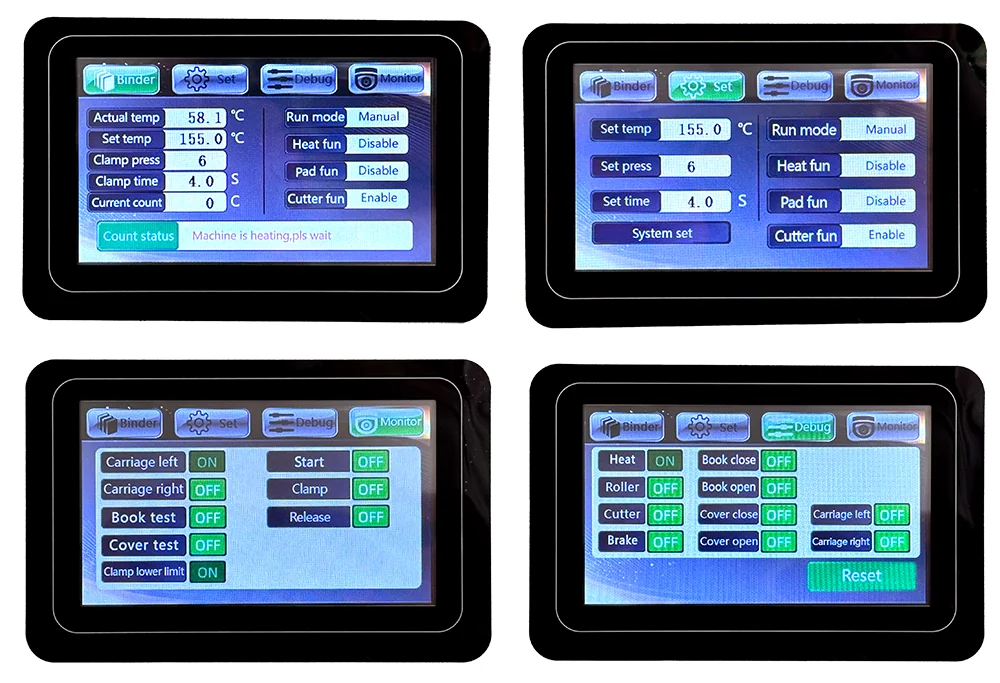

Color Touchscreen TFT Display
The user-friendly MÜHLEN TCM 111 Perfect Binding Machine features a color TFT touchscreen for easy viewing and adjustment of settings.
Automatic or Manual Binding
In fully automatic mode, simply load the paper. In manual mode, the steps are completed one by one.
Technical Specifications
-
Fully automatic binding without manual intervention
-
Automatic binding operations include:
-
Clamping, milling, gluing and pressing
-
Press lowering and automatic carriage belt system
-
Fully automatic binding without manual intervention
-
Capacity of up to 200 books per hour
-
Binding with or without a cover
-
Heavy-duty design for intensive use
-
Fully automatic or manual operation
-
4.3-inch TFT touchscreen for display and settings
-
Adjustable temperature with real-time temperature display
-
Adjustable pressure and pressing time
-
Pressure adjustment with or without milling
-
Adjustable left and right press plate height
-
Heat preservation mode (Heat Fun) maintains 100°C
-
Coverless binding (Pad Fun) function
-
Milling on/off function (Pad Fun)
-
Text and color indicator when ready
-
Real-time display of the number of books bound
-
Binding capacity: 10–400 pages
-
Maximum binding length: 320 mm
-
Debug and monitoring screens
-
Binds A4 and smaller documents
-
Low-cost HOTMELT adhesive
-
Metal/steel body and internal components
-
Manual binding press button
-
Green manual start button
-
Emergency stop button
-
Temperature adjustment: 50–230°C
-
Glue scraper blade adjustment
-
Color TFT screen with audio alerts
-
Waste paper and glue collection tray
-
Initial heating time: 20–30 minutes
-
Symmetrical binding rail
-
Multi-motor system
-
24-month warranty
Advantages
-
Fully automatic binding without manual intervention
-
Binds up to 200 pages per hour
-
Fully automatic perfect binding
-
Adjustable power and time
-
Binding capacity: 10–400 pages
-
Binding length: 320 mm
Physical Specifications
-
Net weight: 60 kg
-
Gross weight: 70 kg
-
Machine dimensions: 1000 × 375 × 360 mm
-
Wooden crate dimensions: 1100 × 360 × 500 mm
