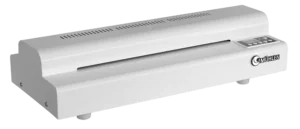

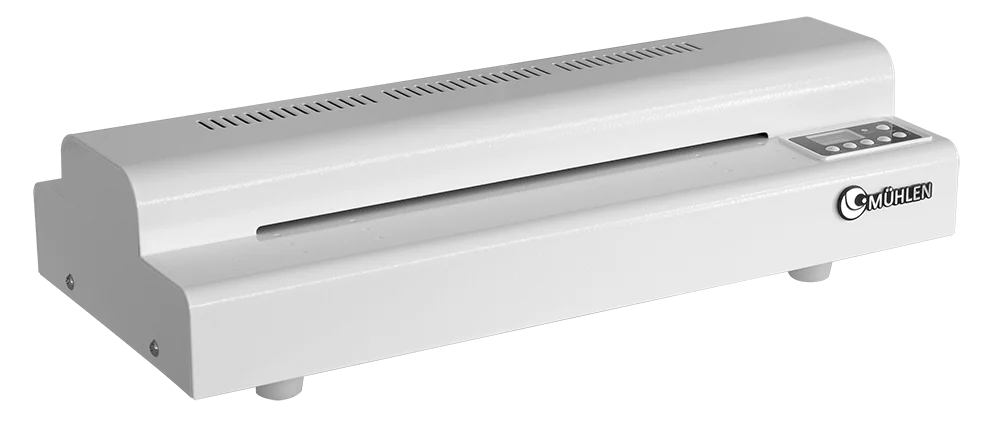

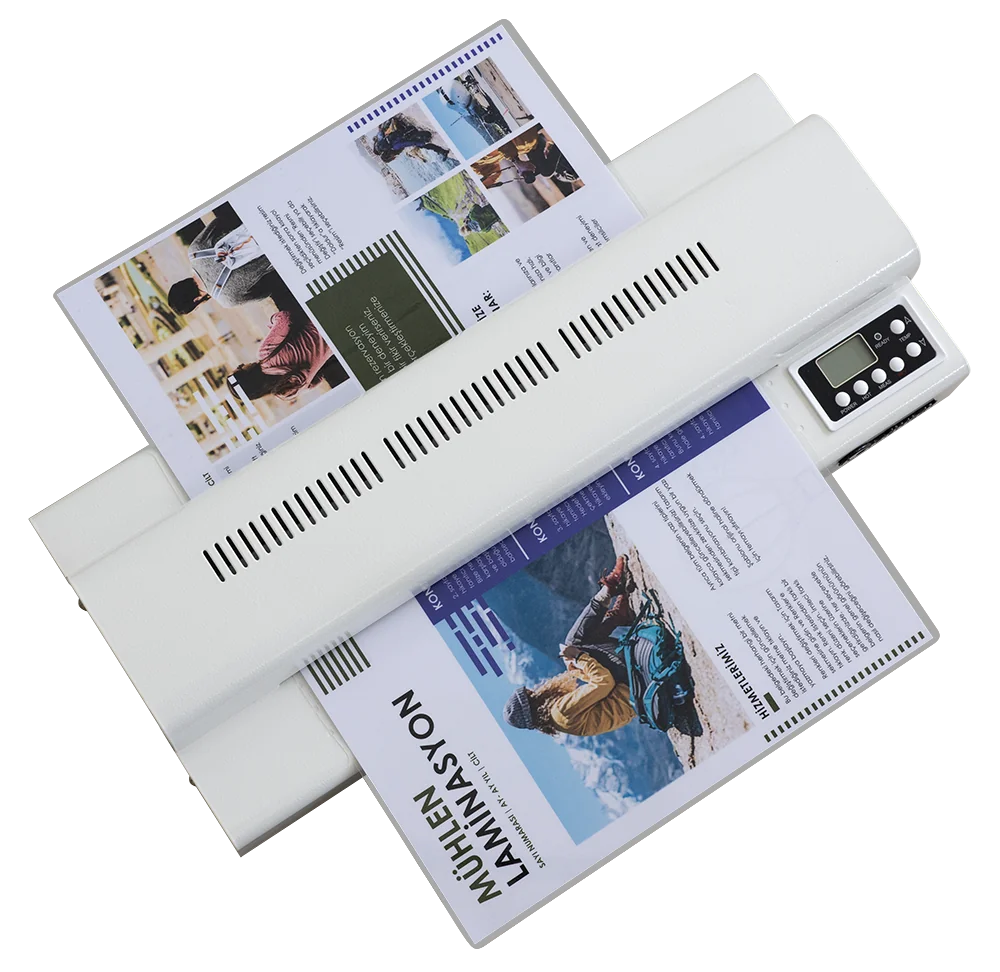

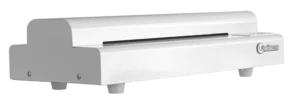

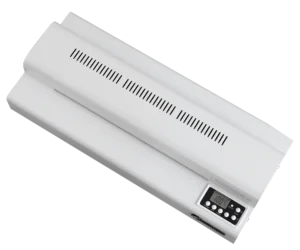

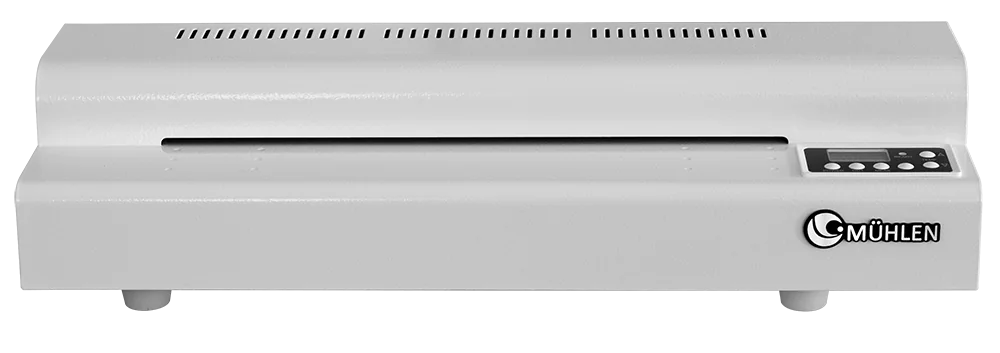

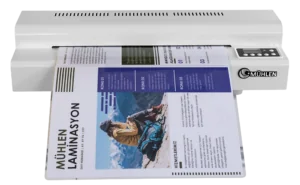

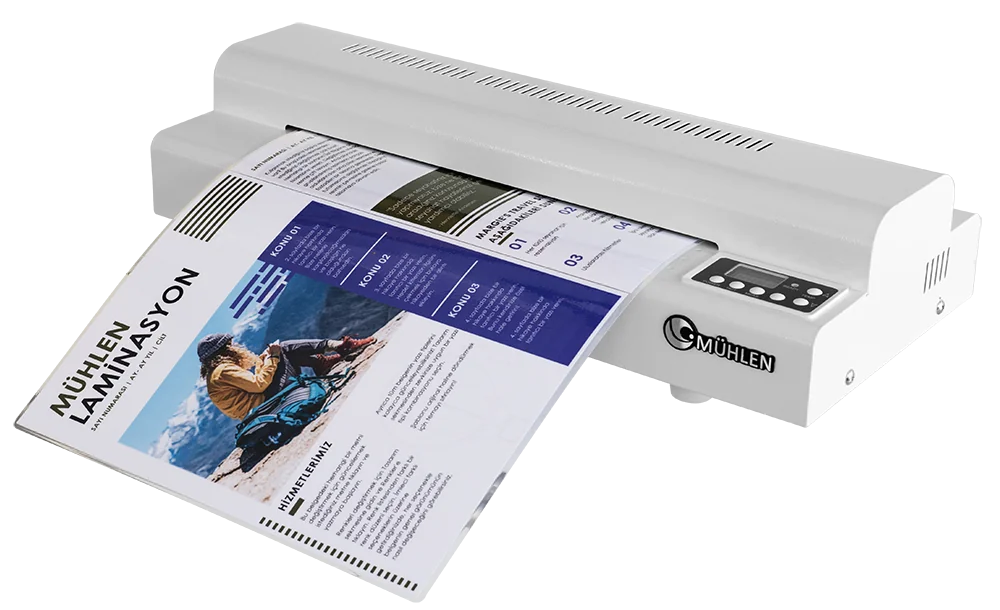

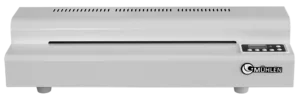

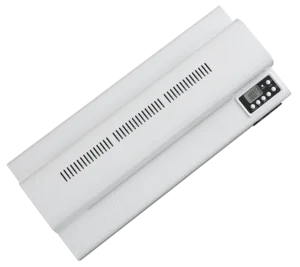

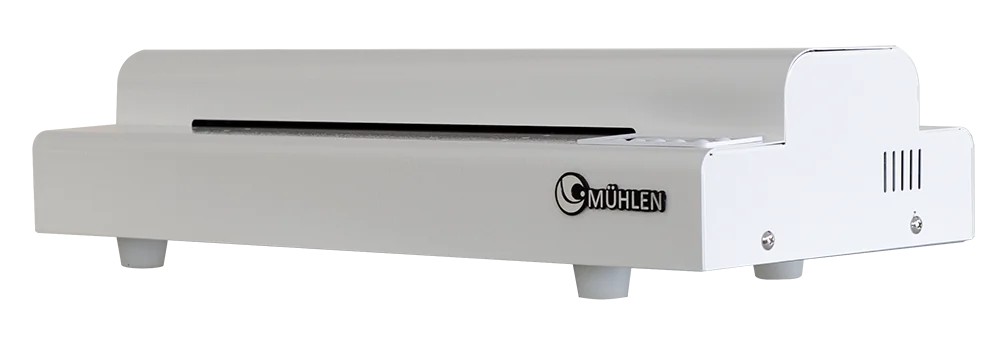

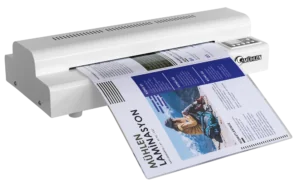

MÜHLEN FLEX R4-330B
Four-Roller A3 PVC Laminator
Four Internally Heated Rollers – A3
The MÜHLEN Flex R4 330B is a professional laminator featuring German engineering and Korean manufacturing. Its four internally heated rollers and adjustable standard speed of 500 mm/min deliver smooth, crisp lamination for documents up to A3 size.

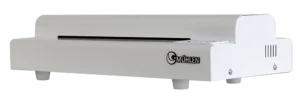

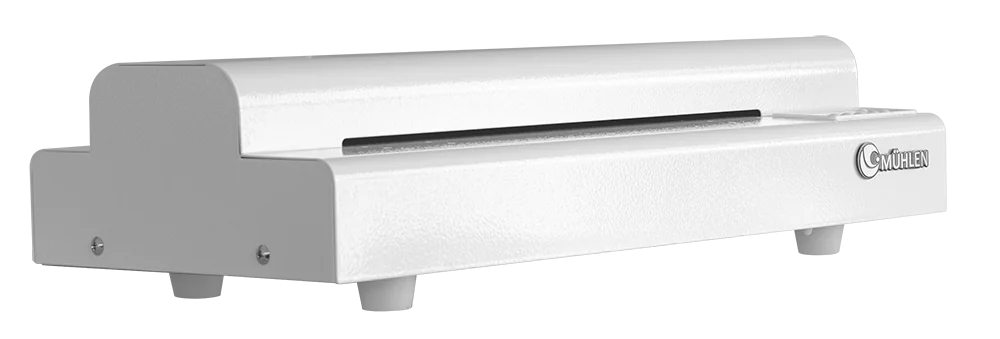

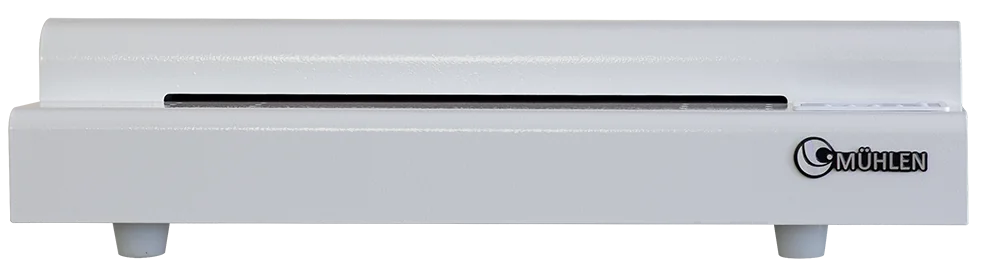

325 mm Feed Opening
With a 325 mm feed opening, the machine can laminate documents up to A3 size at speeds of up to 50 cm per minute. It also features an automatic shut-off system.

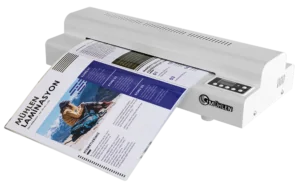

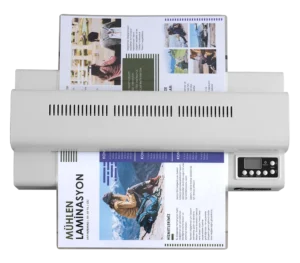

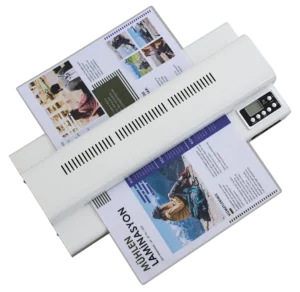

A3 Format & 325 mm Feed Opening
With hot and cold lamination options and a 325 mm feed opening, the machine laminates PVC film on documents up to A3 size, including smaller formats such as A4, A5, and A6.

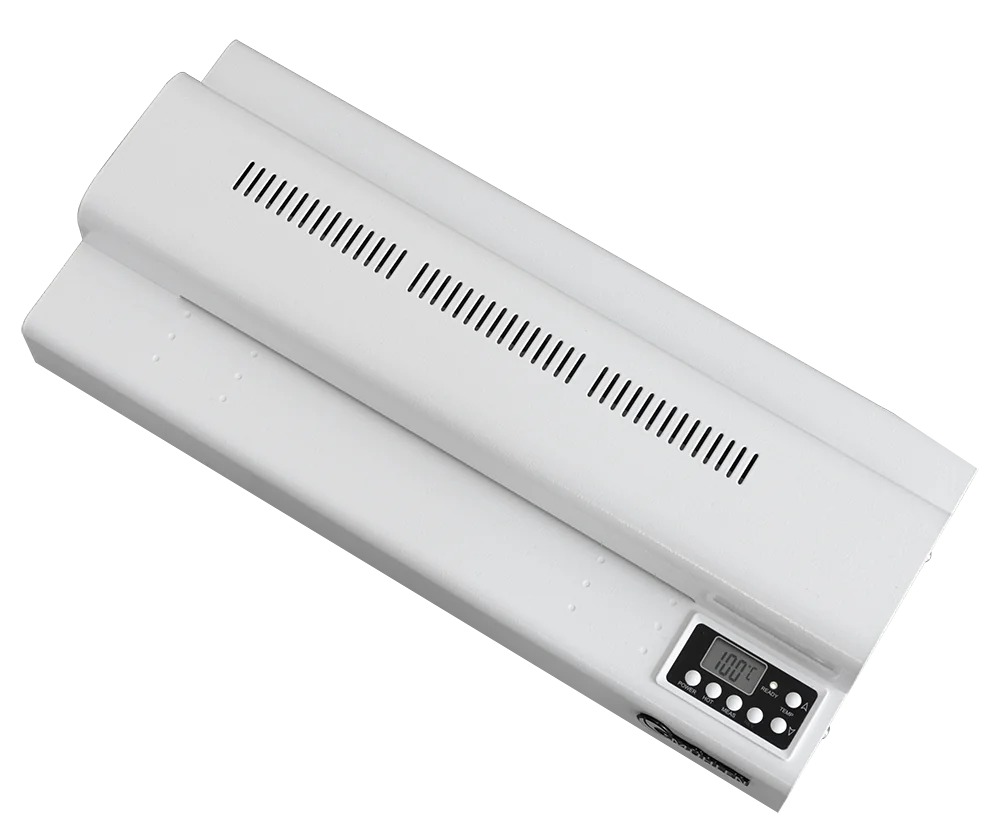

Digital Temperature Control (0–145°C)
Set the temperature digitally from 0°C to 145°C. The machine switches off automatically if no buttons are pressed for two hours.

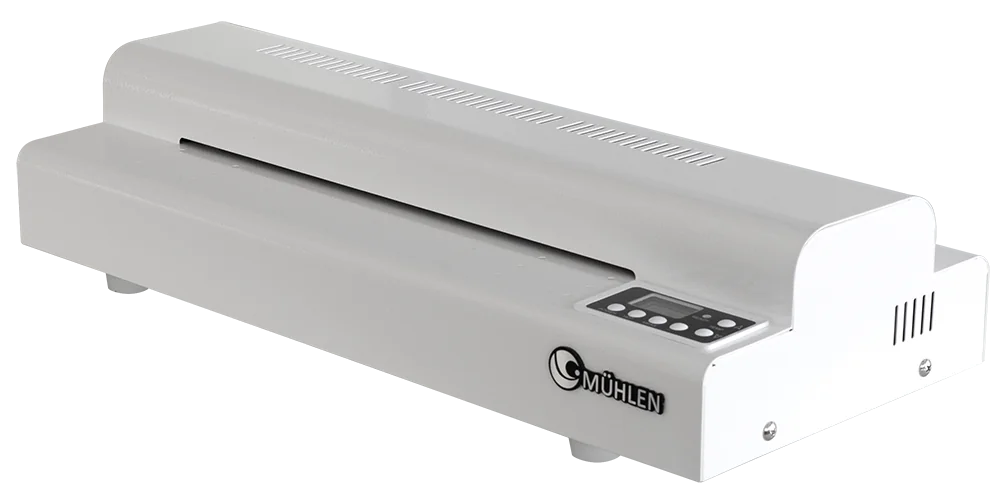

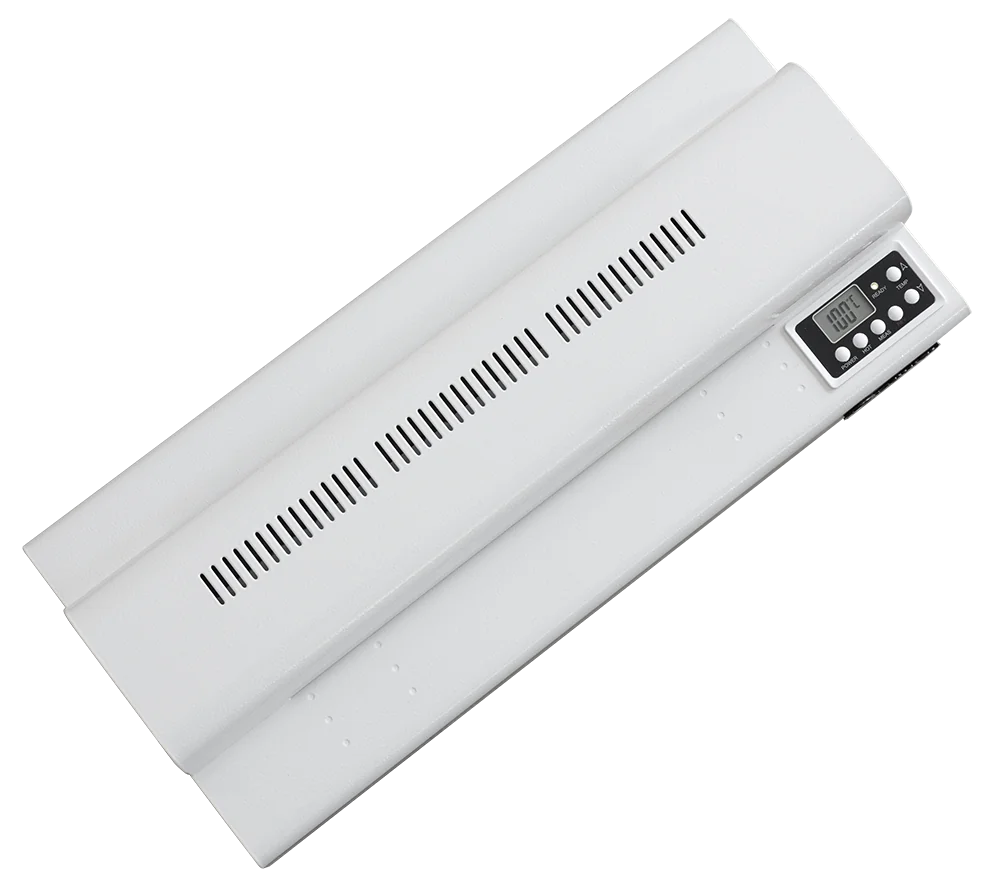

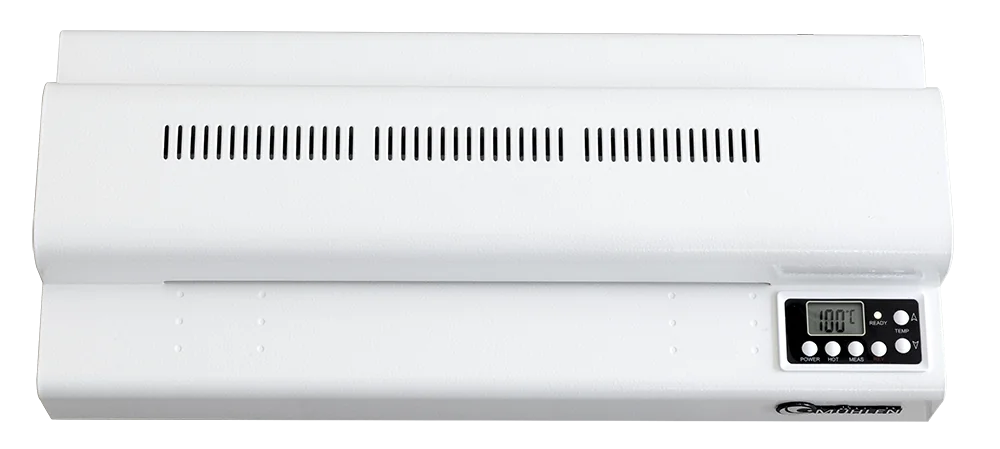

Digital User Panel
The machine features a backlit LCD screen and six control buttons. It also has an automatic shut-off function that activates from standby mode.

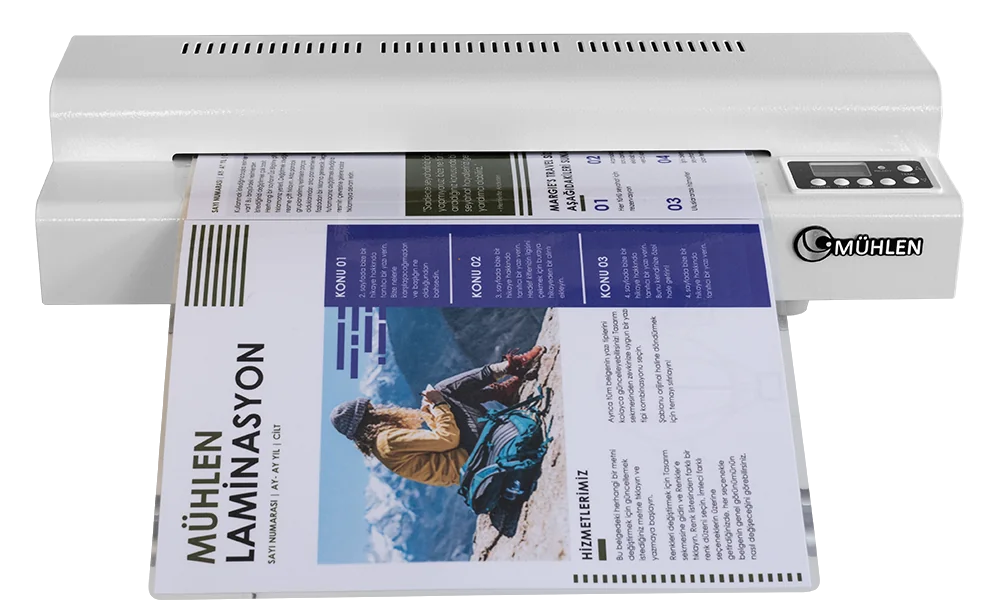

Material and Film Thickness
The FLEX R4-330-B supports laminating films from 80 to 250 microns and can laminate materials up to 1 mm thick, equivalent to approximately 10 sheets of A4 paper.
Jam Prevention and Reverse Function
The machine features a digital LCD panel and uses 550 W of power. It also includes manual reverse and film-jam prevention functions.
Technical Specifications
-
Feed opening width: 325 mm
-
Maximum lamination speed: 500 mm/min
-
Four internally heated rollers made of special silicone
-
Standby mode and automatic shut-off
-
Automatically shuts off after two hours without operation
-
Compatible with A3, A4, A5, A6, and smaller formats
-
PVC film thickness: 80–250 microns × 2 (single sheet)
-
Maximum document/photo thickness: 1 mm (listed as equivalent to 833 microns)
-
325 mm film feed opening
-
Audio alerts and backlit LED control panel
-
Warm-up time: approximately 2–3 minutes
-
Automatic shut-off from standby mode
-
Digital temperature adjustment: 0–145°C
-
100°C shortcut button and up/down arrow buttons
-
Audible and visual alert when the selected temperature is reached
-
Intended for intensive, all-day use
-
Hot and cold lamination modes
-
Suitable for photos, documents, cards, and more
-
Produces glossy, damage-free, wrinkle-free results
-
Automatic lamination speed system
-
Jam prevention and reverse function
-
Written and audible alerts with an LED display
-
LED temperature display
-
Green LED indicator
-
Power consumption: 550 W
-
Warranty: 24 months
Advantages
-
A3 laminator feed opening: 325 mm
-
Maximum lamination speed: 500 mm/min
-
Four internally heated rollers (custom-made)
-
Standby mode and automatic shut-off
-
Compatible with A3, A4, A5, A6, and smaller formats
-
PVC film thickness: 75–250 microns × 2 (single sheet)
Physical Specifications
-
Package dimensions: 500 × 250 × 150 mm
-
Machine dimensions: 480 × 211 × 115 mm
-
Gross weight: 10 kg
-
Net weight: 8.3 kg
