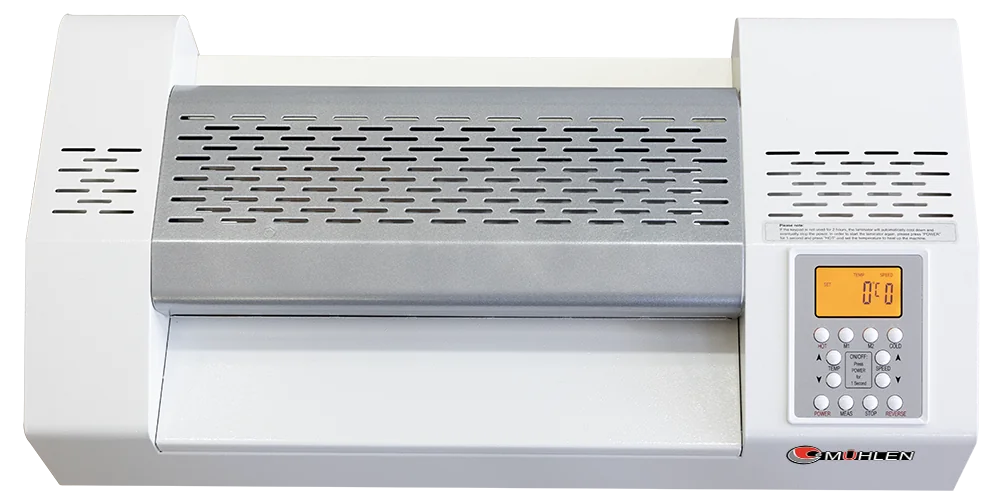

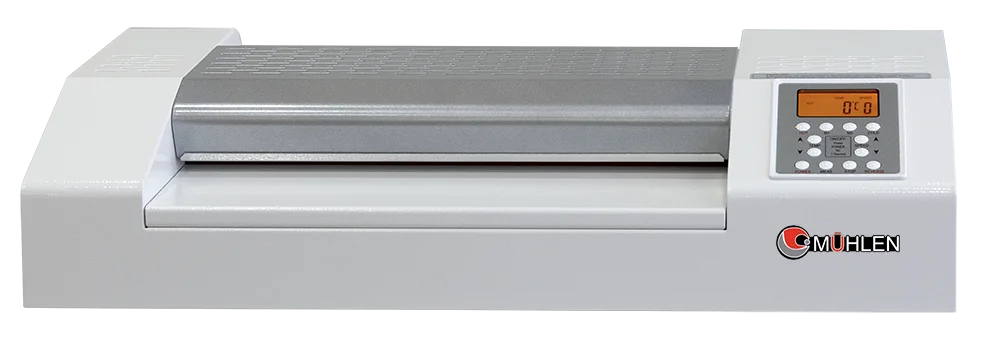

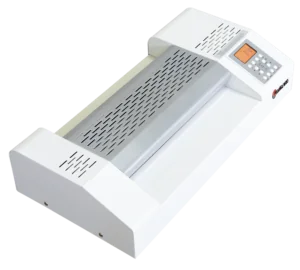

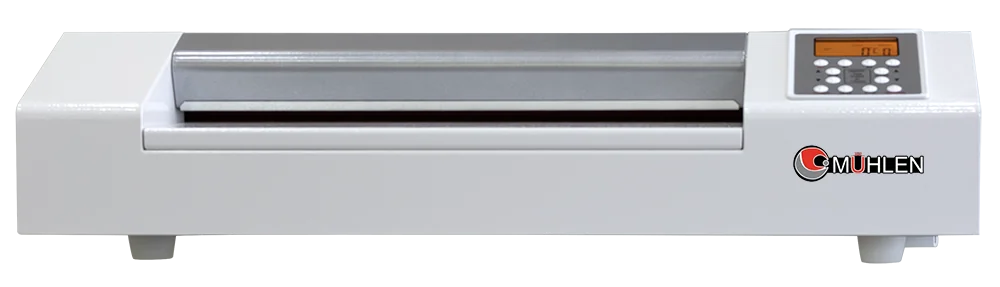

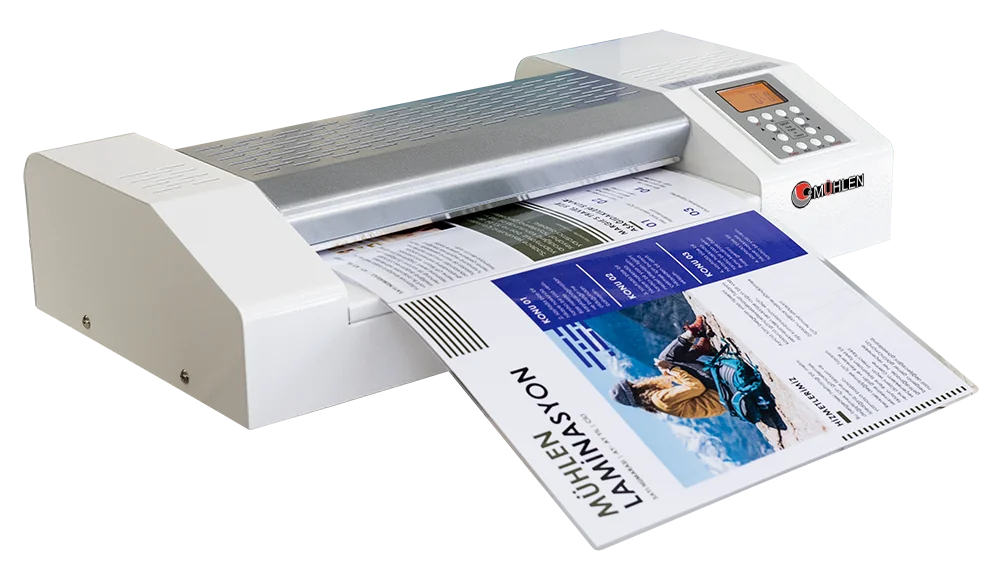

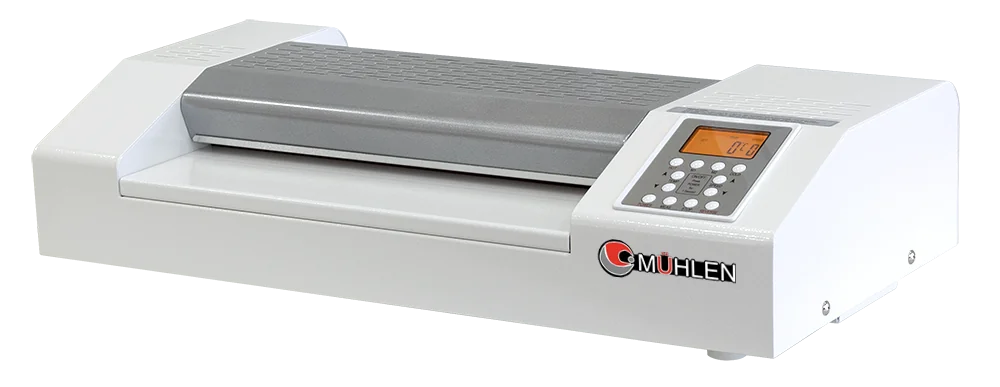

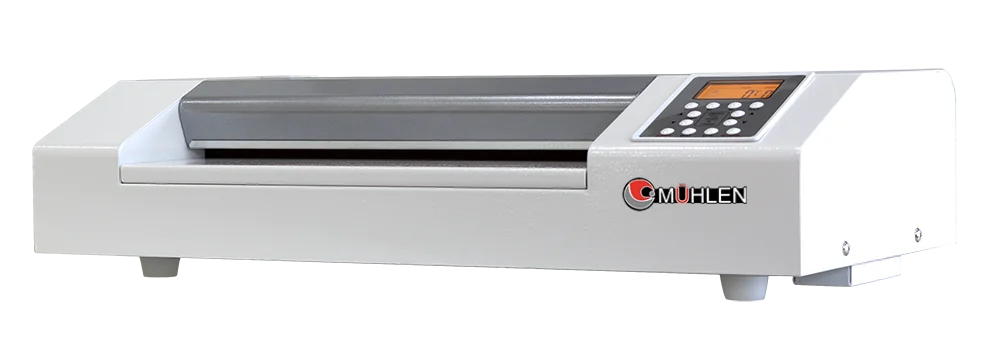

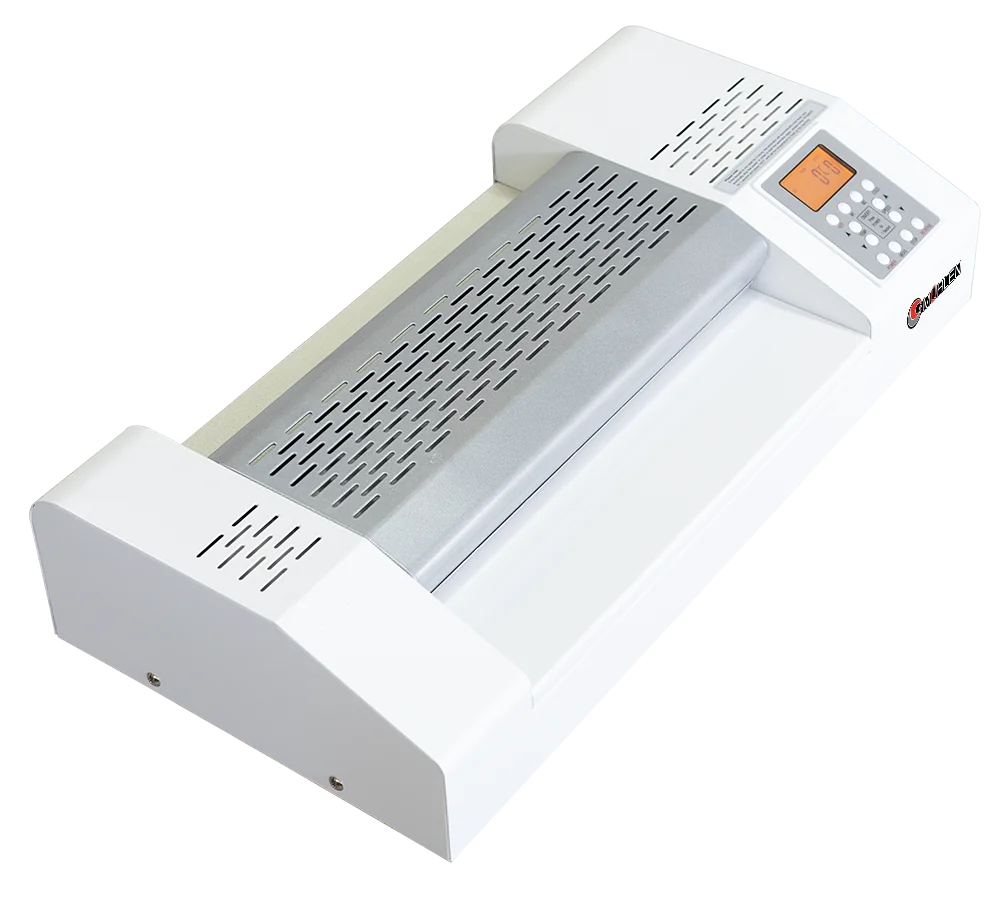

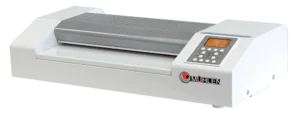

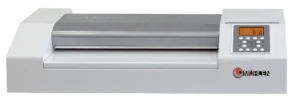

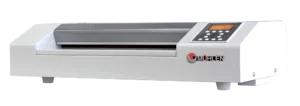

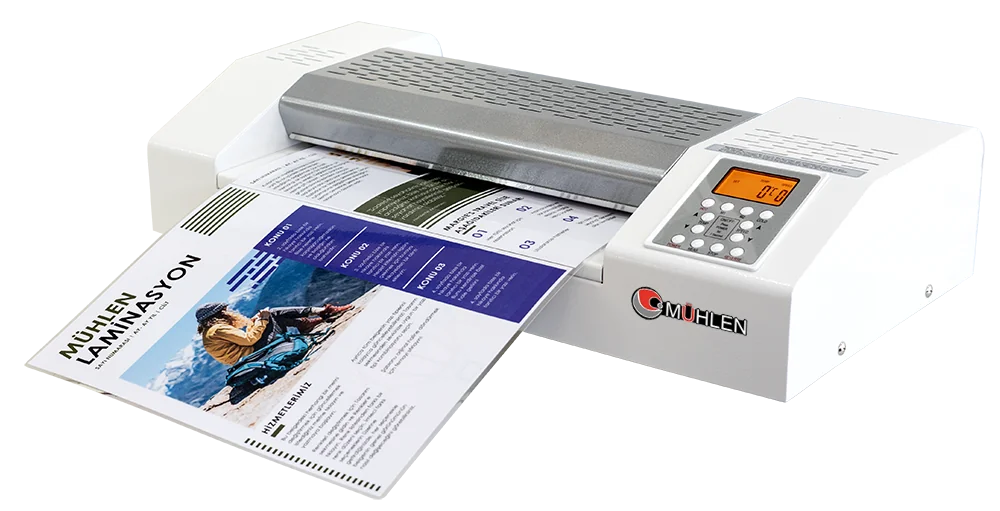

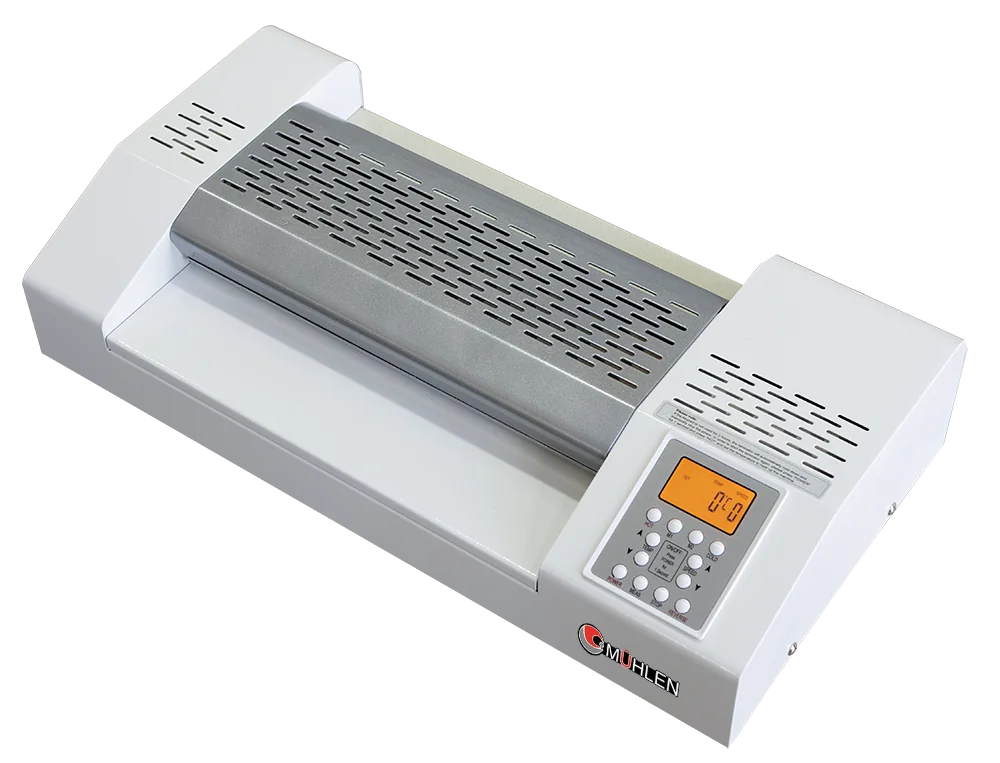

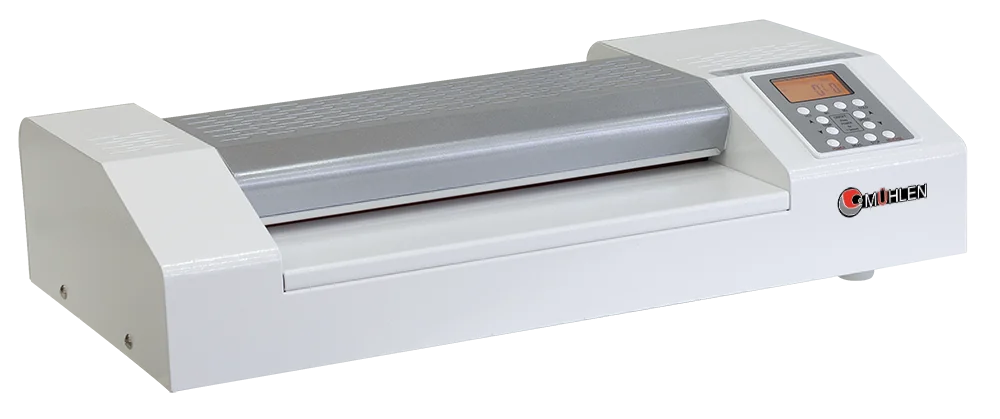

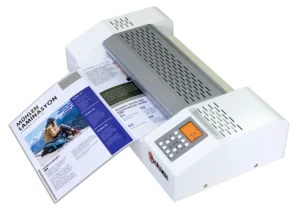

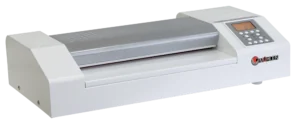

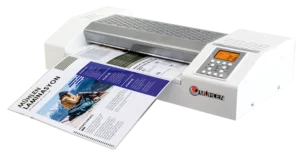

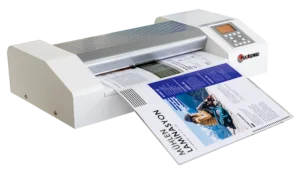

MÜHLEN FLEX R6-330C
Six-Roller A3 PVC Laminator
A3 – Six-Roller System with Internal Heating
The MÜHLEN Flex R6 330C is a professional PVC laminator featuring German engineering and Korean manufacturing. Its six-roller system—four heating rollers and two cooling rollers—is described as the world’s first and only of its kind for A3-size lamination.
330 mm Feed Opening, 9 Speed Settings
Designed for documents up to A3 size, the laminator has a 330 mm feed opening and nine digital speed settings. It laminates at speeds of up to 140 cm per minute and features an automatic electrical protection system.
A3 Format & Heavy-Duty Use

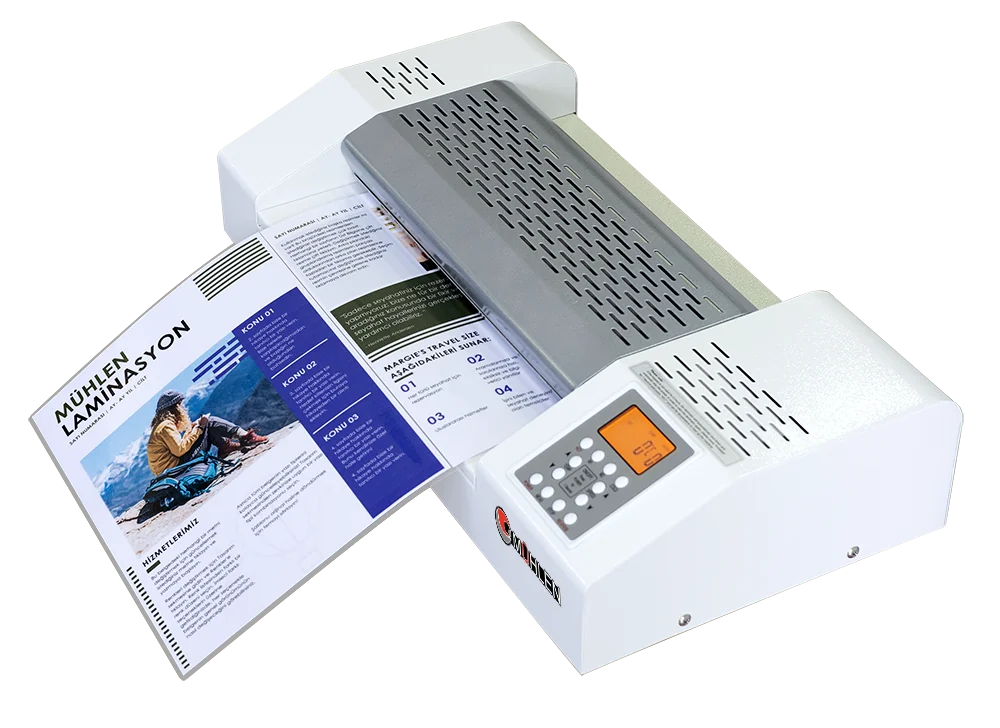

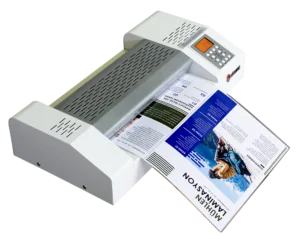

With hot and cold lamination modes and a 330 mm feed opening, the machine laminates PVC film on documents up to A3 size, including smaller formats such as A4, A5, and A6.
Digital Temperature Control (0–140°C)
Set the temperature digitally from 0°C to 140°C. Two memory buttons provide added convenience.

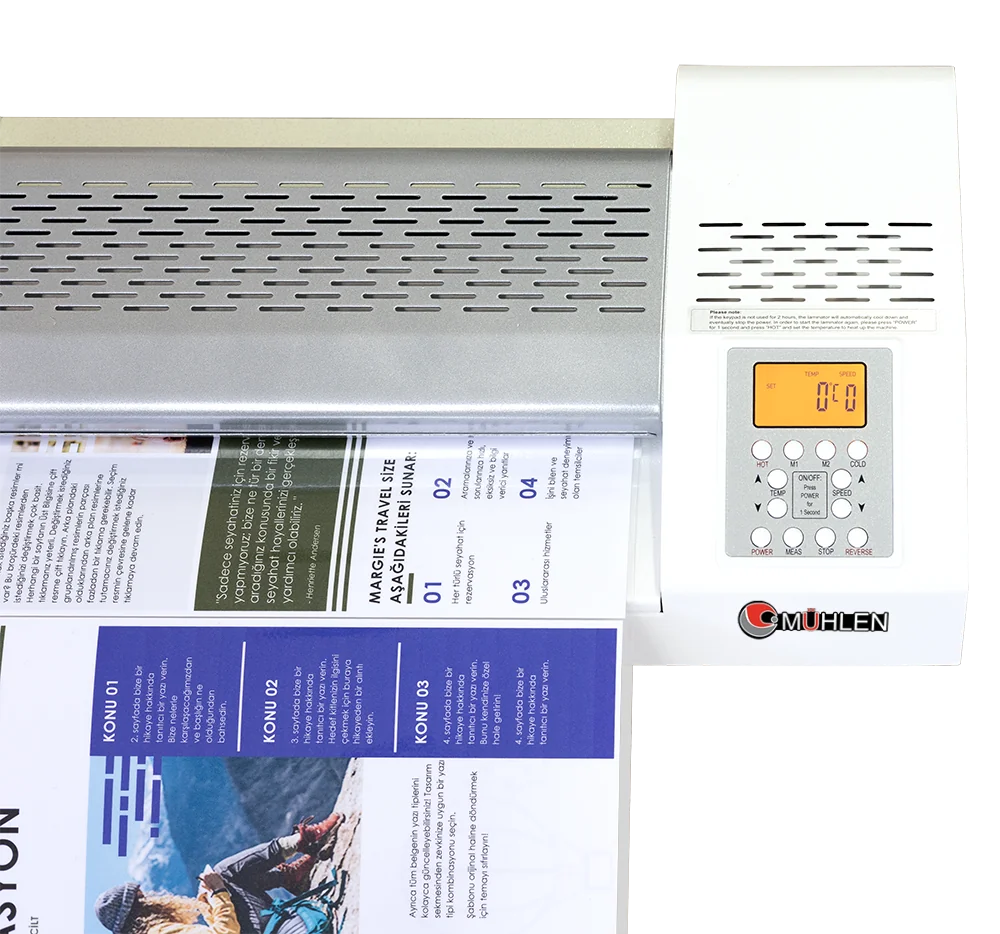

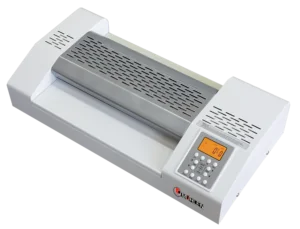

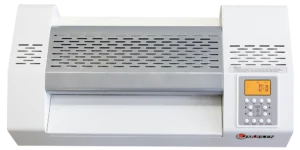

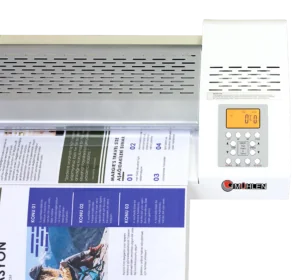

Digital Control Panel
The machine features a backlit LCD screen, 12 control buttons, and an automatic shut-off function that activates from standby mode.
Material and Lamination Thickness
The FLEX R6-330C supports laminating films from 75 to 350 microns and can laminate materials up to 3 mm thick, equivalent to approximately 30 sheets of A4 paper.
Jam Prevention and Reverse Function
The machine features a patented cooling system and uses 1,050 W of power. It also includes manual reverse and film-jam prevention functions.
Technical Specifications
-
A3 laminator feed opening: 330 mm
-
Maximum lamination speed: 1,400 mm/min
-
Six rollers: four heating rollers and two cooling rollers
-
Nine digitally adjustable heat settings
-
Standby mode and automatic shut-off
-
Automatically shuts off after two hours without operation
-
Compatible with A3, A4, A5, A6, and smaller formats
-
PVC film thickness: 75–350 microns × 2 (single sheet)
-
Patented cooling system for the rollers and machine interior
-
Maximum document/photo thickness: 3 mm (listed as equivalent to 2,500 microns)
-
Film feed opening width: 330 mm
-
Audio alerts and backlit LED control panel
-
Warm-up time: approximately 5–6 minutes
-
Automatic shut-off from standby mode
-
Designed for intensive, all-day use
-
Hot and cold lamination modes
-
Two digital temperature memory settings: 0–140°C
-
Protection system: anti-jam and stick-free; prevents scorching and sticking
-
Automatic detection system activates when a document is inserted
-
Suitable for photos, documents, cards, and more
-
Produces glossy, damage-free, wrinkle-free results
-
Automatic lamination speed system
-
Jam prevention and reverse function
-
LED screen with written and audible alerts
-
Manual temperature adjustment: 9 settings
-
Control panel with 12 touch buttons
-
LED temperature display
-
Power consumption: 1,050 W
-
Warranty: 24 months
Advantages
-
A3 laminator feed opening: 330 mm
-
Maximum lamination speed: 1,400 mm/min
-
Six rollers: four heating rollers and two cooling rollers
-
Nine digitally adjustable heat settings
-
Standby mode and automatic shut-off
-
Compatible with A3, A4, A5, A6, and smaller formats
-
PVC film thickness: 75–350 microns × 2 (single sheet)
Physical Specifications
-
Package dimensions: 585 × 320 × 175 mm
-
Machine dimensions: 535 × 270 × 140 mm
-
Gross weight: 18 kg
-
Net weight: 16 kg
