MÜHLEN GEN 325

MÜHLEN GEN 325

Packaging Padding Machines

General Features

Fast and Quiet

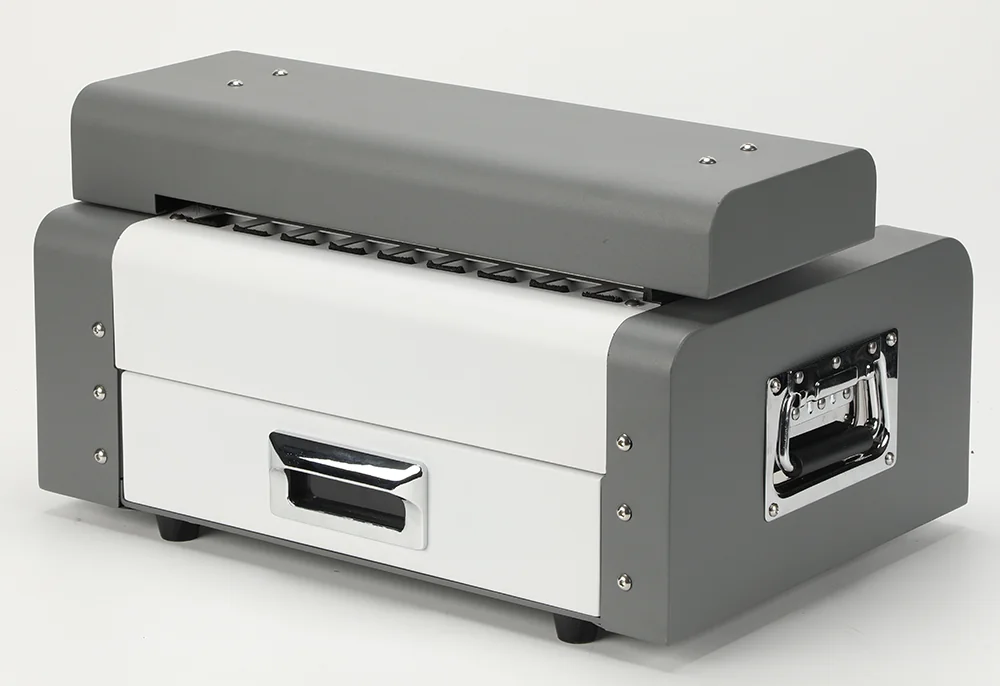

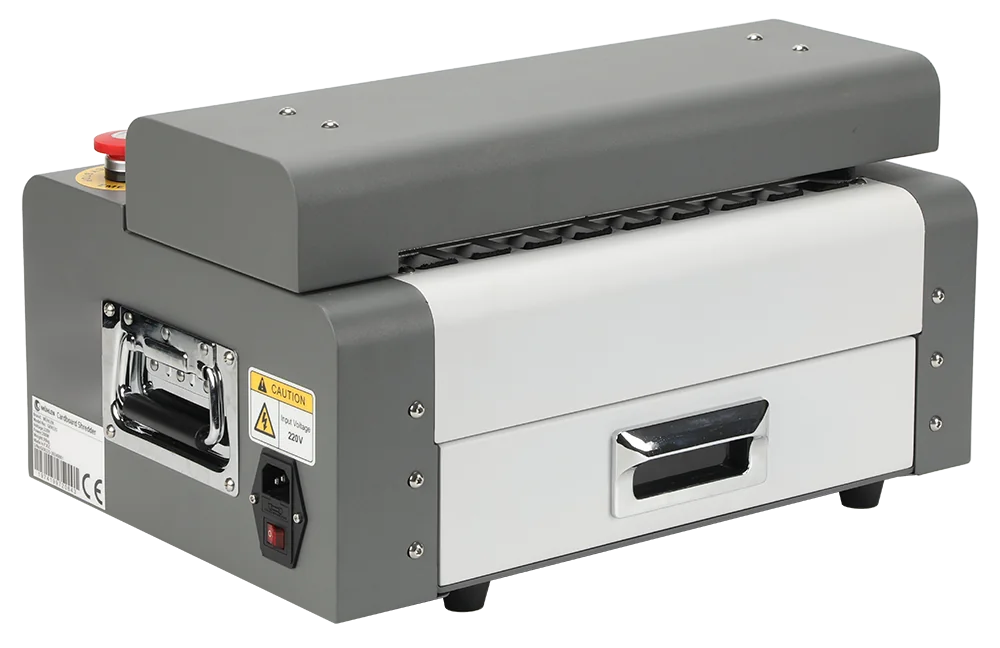

The machine processes up to 3 metres of cardboard per minute and operates at under 55 dB. It also features a removable waste drawer.
Automatic Trimming

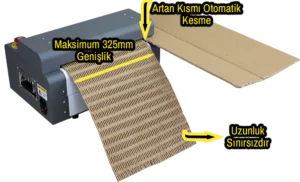

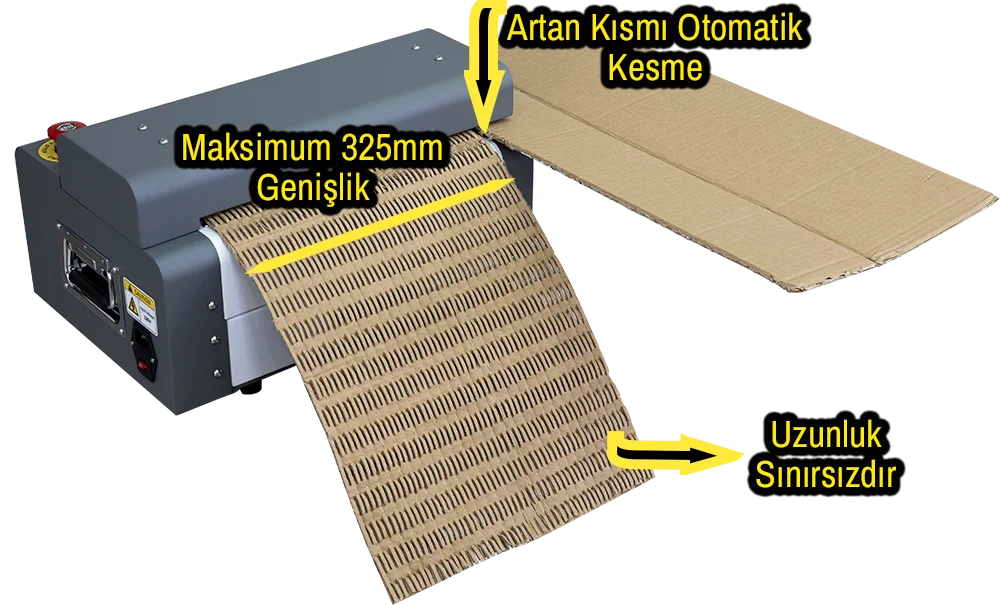

The MÜHLEN GEN 325 has a 325 mm feed width and automatically trims excess cardboard, separating the offcuts from the finished cushioning material.
Powerful Motor and Blades
Powered by a 400 W motor, the machine features automatic feeding and a reverse function to release jammed cardboard.

Processes Cardboard up to 10 mm Thick
The machine converts cardboard up to 10 mm thick into honeycomb cushioning material. It can process cardboard of unlimited length.
Safety

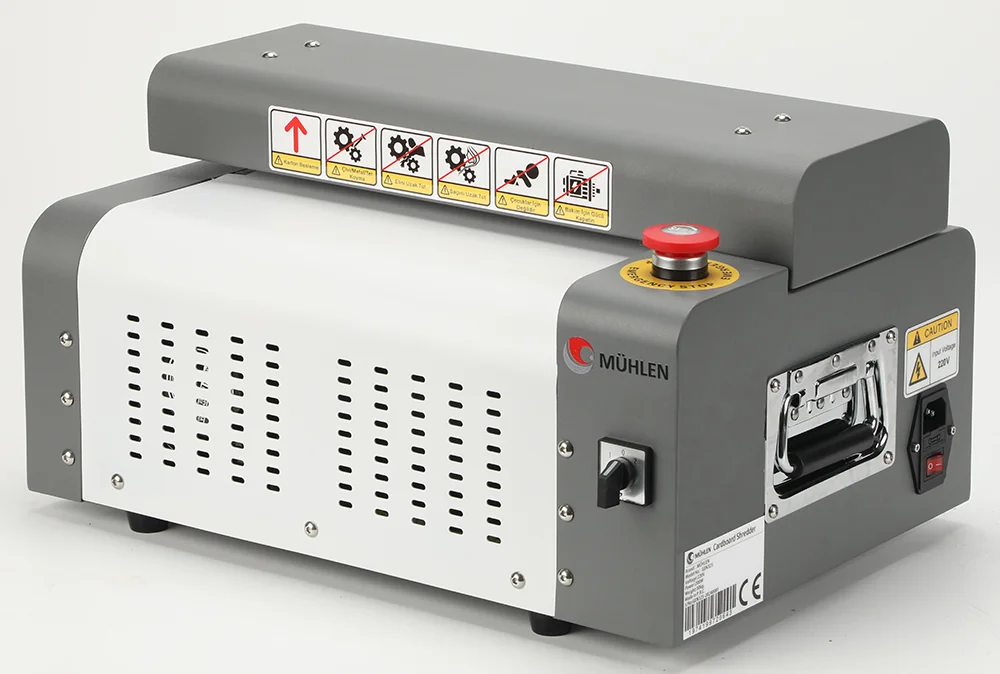

The machine has an emergency stop button. Its 10 mm-high feed opening makes it difficult for fingers to reach inside.

Technical Specifications

Automatic cardboard processing and cushioning machine
High-speed cardboard processing and cushioning: 3 m/min
Processes and trims cardboard up to 325 mm wide
Automatically trims cardboard wider than 325 mm
Feed opening height: 10 mm (maximum cardboard thickness)
Converts cardboard into soft, flexible cushioning material
Cut size: 3 mm × 2 cm for softer cushioning

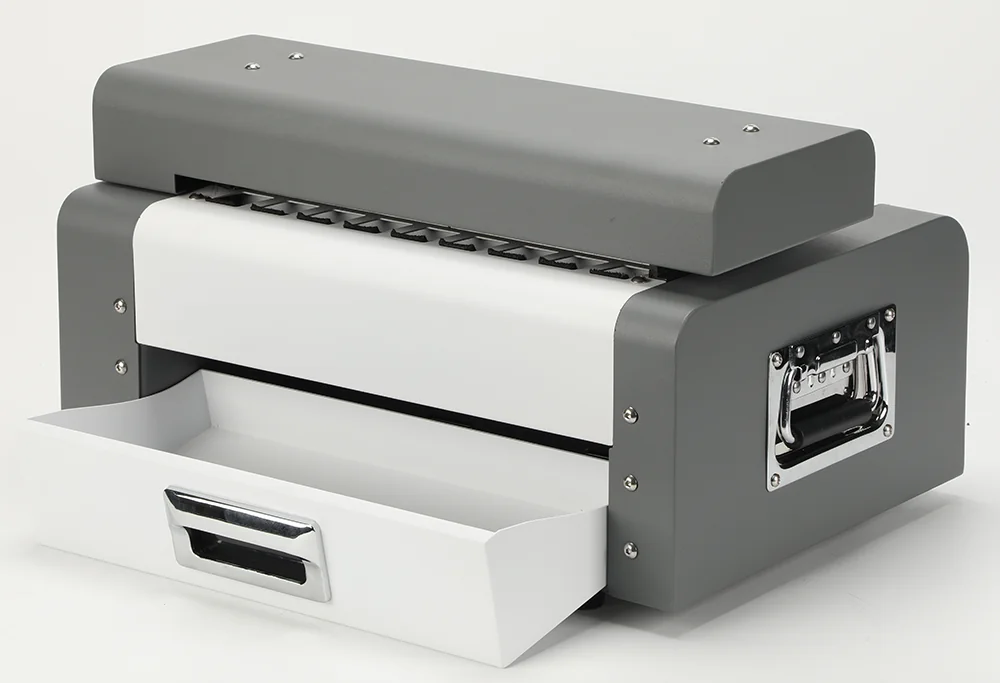

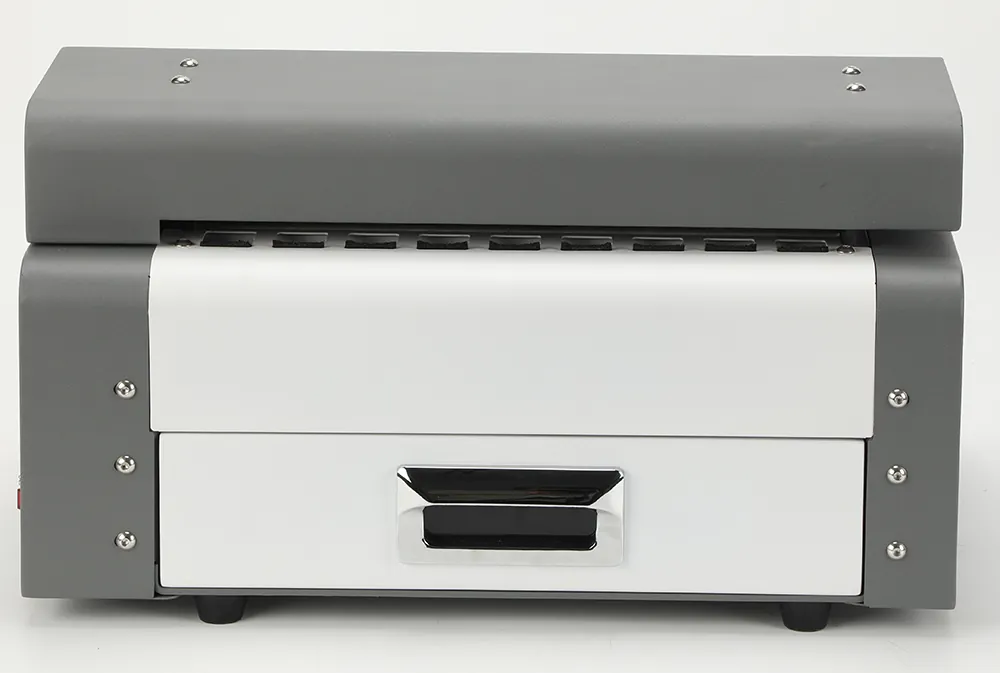

Removable, easy-to-empty waste drawer
High-quality steel construction, inside and out
Processes corrugated cardboard and cardboard

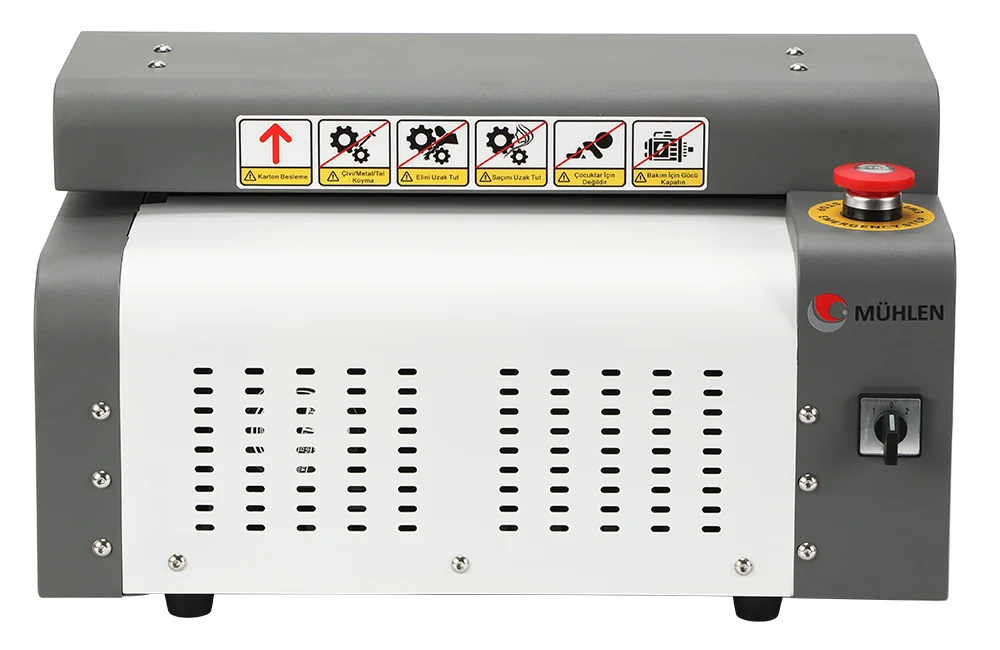

Three-stage controls: off, forward and reverse
Hardened cutting blades made from specially selected steel

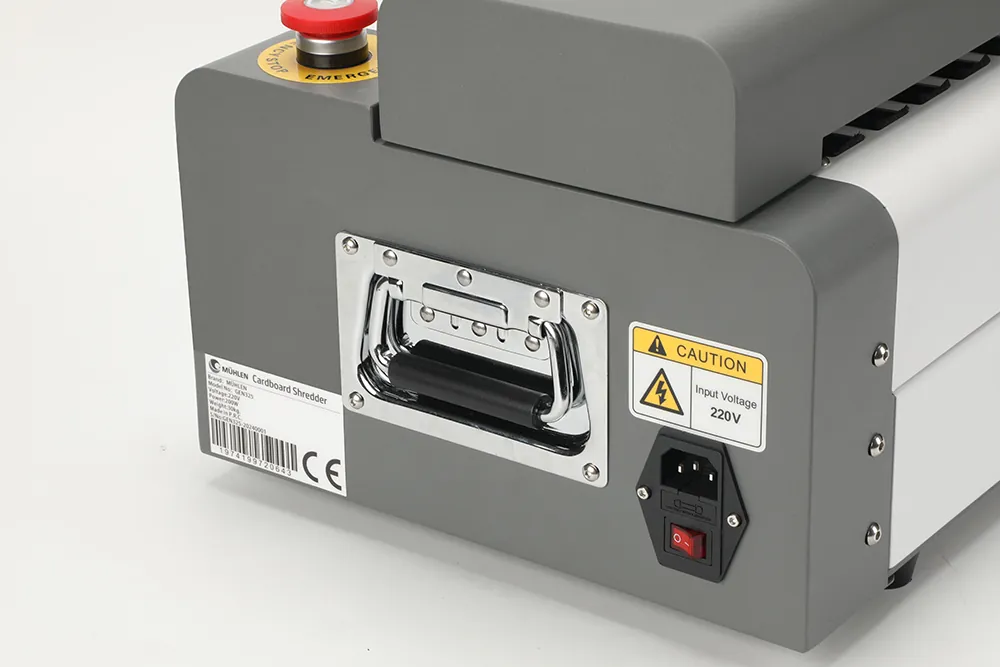

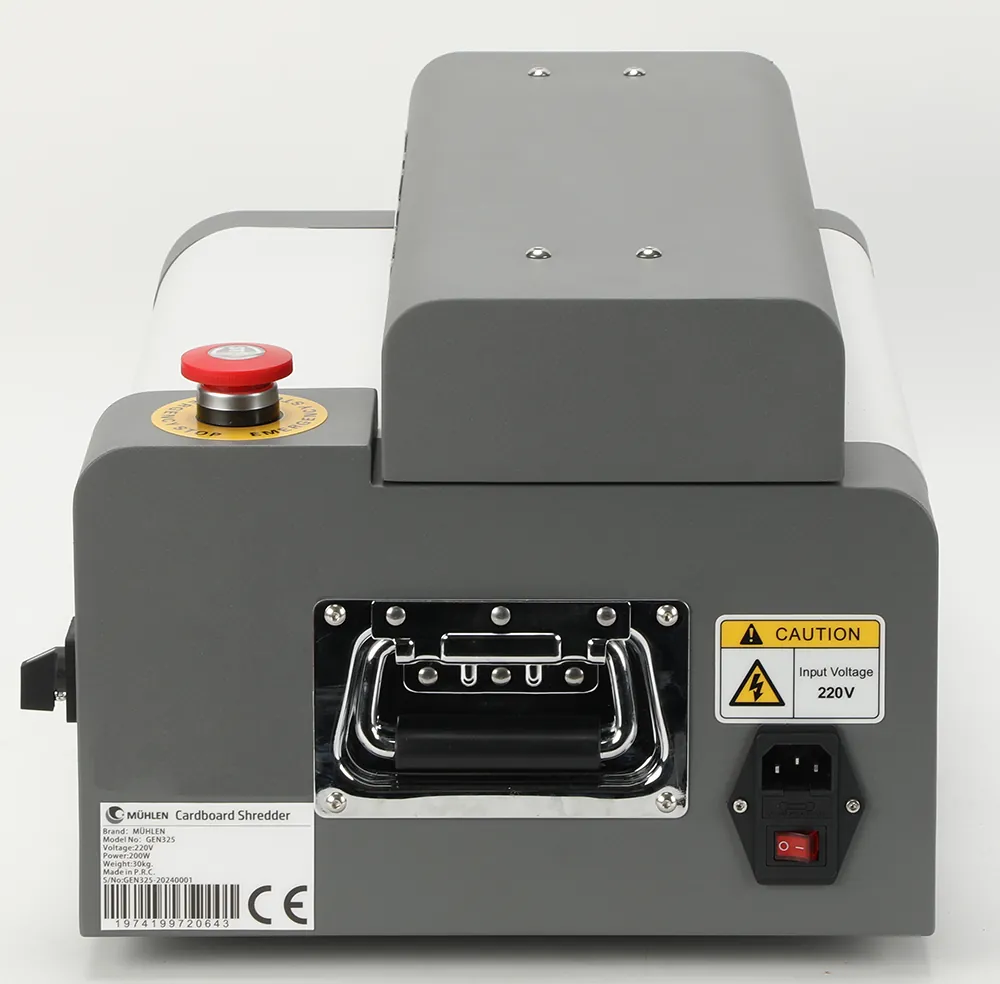

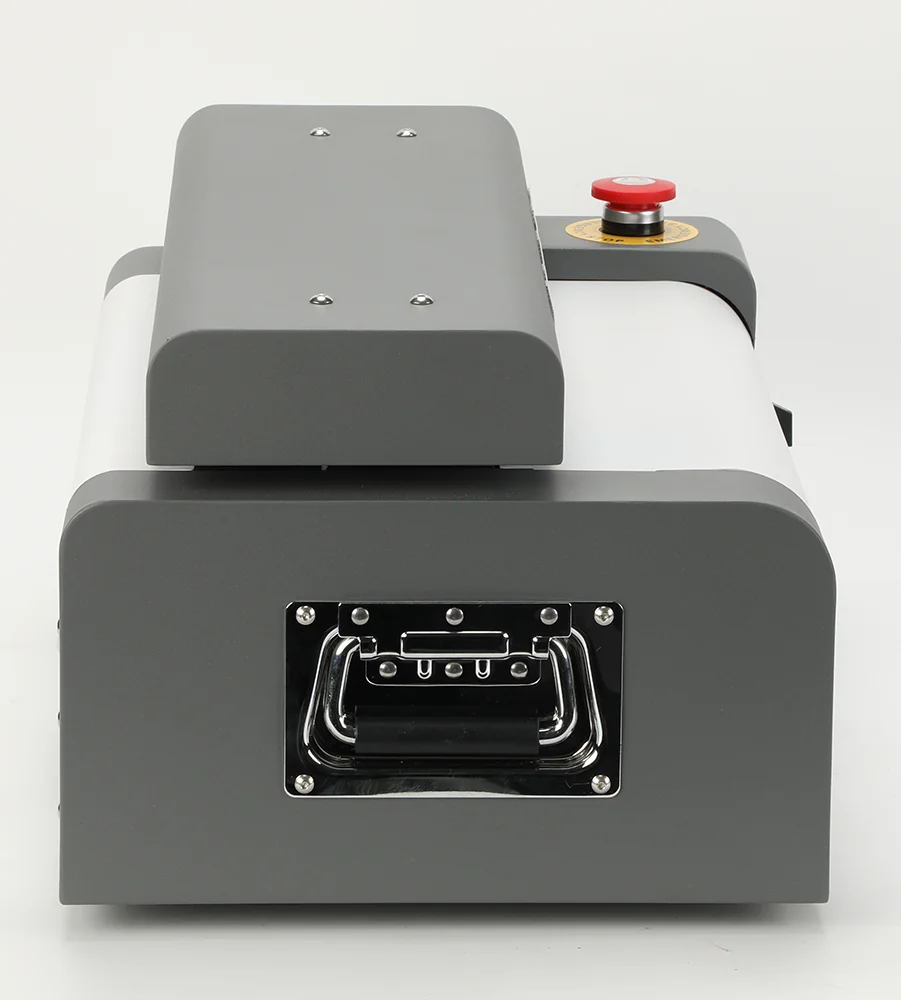

Steel carrying handles mounted at both corners of the frame
Easy to use and designed with user safety in mind
Economical recycling system for quick cost recovery
Ultra-quiet operation: under 55 dB
Emergency stop button
Foam-lined shipping and carrying case
Compact, desktop design
Environmentally friendly system
400 W motor
User manual
24-month warranty

Advantages

Automatic cushioning material production
High processing speed: 3 m/min
Low operating noise: <55 dB

Feed opening width: 325 mm
Feed opening height: 10 mm

Physical Specifications

Machine dimensions: 450 (W) × 305 (D) × 245 (H) mm
Wooden crate dimensions: 500 × 350 × 300 mm

Machine weight: 30 kg
Gross weight: 33 kg
